Specialist service
Guniting & Shotcreting
The Guniting & Shotcreting is the most effective process of repairing concrete work which has been damaged due to inferior work or other reasons. It is also used for providing an impervious layer.
Method
How guniting and shotcreting works
The Guniting & Shotcreting is the most effective process of repairing concrete work which has been damaged due to inferior work or other reasons. It is also used for providing an impervious layer.
Purpose and protection
The Guniting & Shotcreting is the most effective process of repairing concrete work which has been damaged due to inferior work or other reasons. It is also used for providing an impervious layer.
Applied concrete technique
Guniting & Shotcrete is concrete (or sometimes mortar) conveyed through a hose and pneumatically projected at high velocity onto a surface, as a construction technique. It is reinforced by conventional steel rods, steel mesh, and/or fibers. Fiber reinforcement (steel or synthetic) is also used for stabilization in applications such as slopes or tunnelling. Shotcrete is usually an all-inclusive term for both the wet-mix and dry-mix versions.
Dry-mix process
The dry mix method involves placing the dry ingredients into a hopper and then conveying them pneumatically through a hose to the nozzle. The nozzle man controls the addition of water at the nozzle. The water and the dry mixture is not completely mixed, but is completed as the mixture hits the receiving surface.
Wet-mix process
Wet-mix shotcrete involves pumping of a previously prepared concrete, typically ready-mixed concrete, to the nozzle. Compressed air is introduced at the nozzle to impel the mixture onto the receiving surface. The wet-process procedure generally produces less rebound, waste (when material falls to the floor), and dust compared to the dry-mix process. The greatest advantage of the wet-mix process is all the ingredients are mixed with the water and additives required, also larger volumes can be placed in less time than the Dry- Process.
From the field

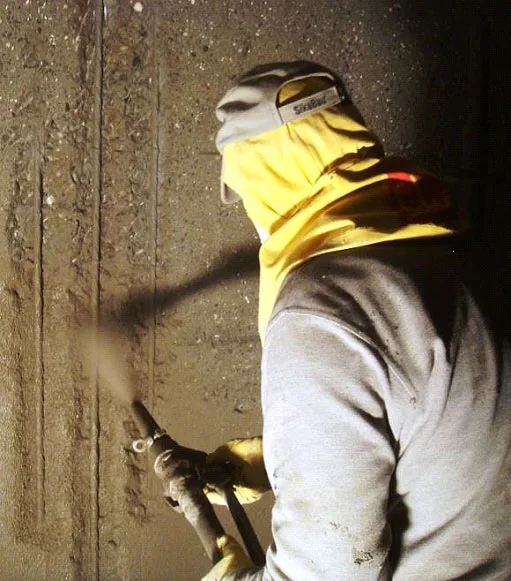

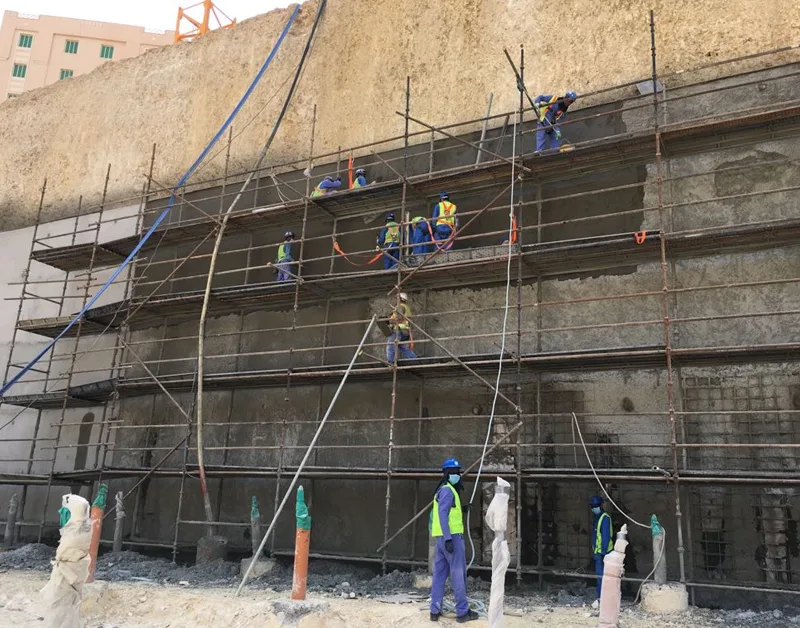

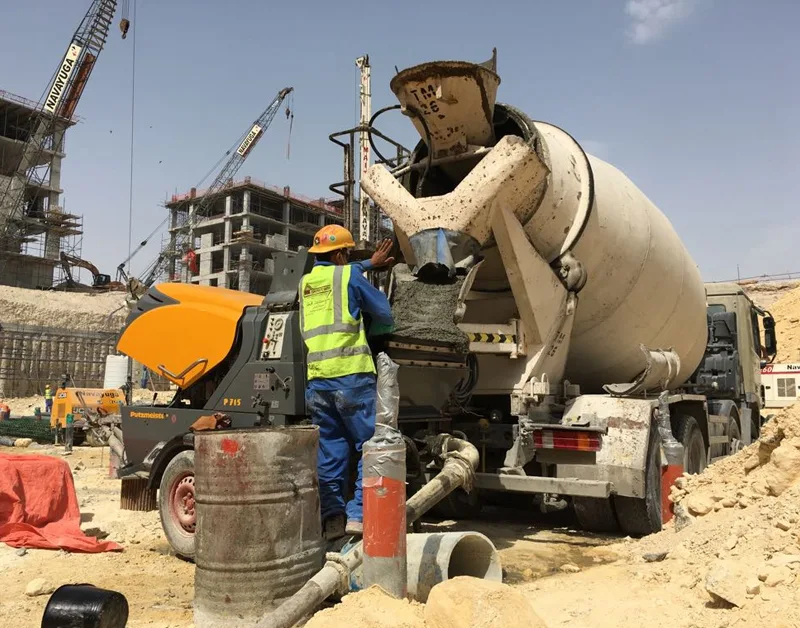

Guniting and shotcreting gallery
Selected photography from the preserved service record.
